SE/PE series, light-duty and light-duty precision rotary drives, are mostly used in industrial automation with horizontally installation, radar tracking and clean energy special vehicles, among which the tracking accuracy of PE series rotary drives can reach 0.02°.
WEA series, heavy-duty slewing drive, are mostly used in various engineering vehicles such as aerial work vehicles and truck cranes, and slewing equipment that require high torque and low speed. It can simultaneously carry radial, axial and overturning moments. It is easy to install and has good self-locking performance.
性能参数表 | |||||||
Slewing Drive Performance Data | |||||||

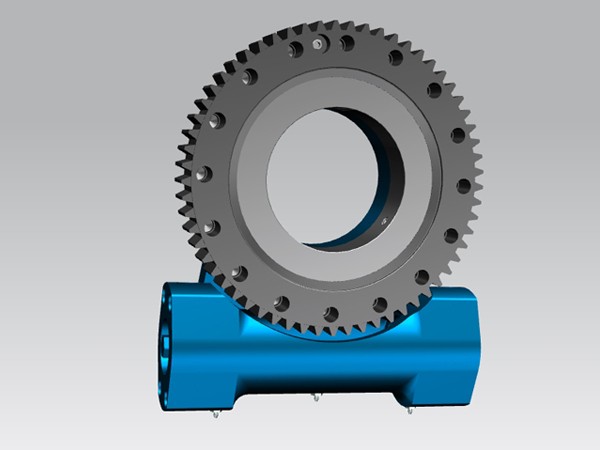

Model No. S9 | |||||||
Output Torque | Tilting Moment Torque | Holding Torque | Axial Load | Radial Load | Gear Ratio | Precision | Weight |
输出扭矩 | 倾覆力矩 | 保持力矩 | 轴向载荷 | 径向载荷 | 减速比 | 精度 | 重量 |
8 KN.M | 35.6 KN.M | 39.8 KN.M | 580 KN | 220 KN | 62:1 | ≤0.15° | 52 KG |
5904 LBF.FT | 26.3*10m³ LBF.FT | 29.4*10m³ LBF.FT | 130.3*10m³ LBF | 49.4*10m³ LBF |
除了生产标准回转支承和回转驱动,洛阳弘展传动也提供机床零部件,机械非标零件的加工。 Clita erat ipsum et lorem et sit, sed stet lorem sit clita duo justo magna dolore erat amet
